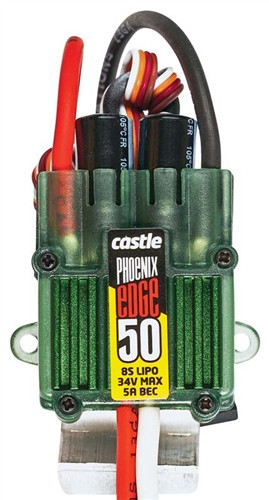

CSEM0102 Castle Creations Phoenix Edge 50 34V 50 Amp ESC
This is the Phoenix Edge 50 Amp Electronic Speed Control from Castle Creations.
Features:
- Ideal for 450 class helis and .25-.35 fixed wing aircraft
- Programmable using Castle Link USB Adapter
- User programmable white auxiliary wire can be used for governor gain input adjustments, serve as an audible beacon after a crash, act as an RPM output for 3 axis gyros that support RPM sensors, and used as an ESC or receiver arming lock
- One year limited warranty through Castle Creations beginning at date of purchase
Includes:
Phoenix Edge 50 Amp ESC with Instruction Sheet
Requires:
Battery and motor connectors of modeler’s choice
Technical Specifications:
Input Voltage: 2S-8S LiPo
Max Continuous Amps at Full Throttle: 50
Dimensions: 1.7 x 2.1 x 0.8″ (43.4 x 53.5 x 21.4mm)
Weight: 2.5oz (70.8g) with wires
1.6oz (45.3g) without wires
Manuals:
CSEM0102-Manual-English
CSEM0102-Quick-Start-Guide-English
CSEM0102-Wiring-Guide-English
