Description

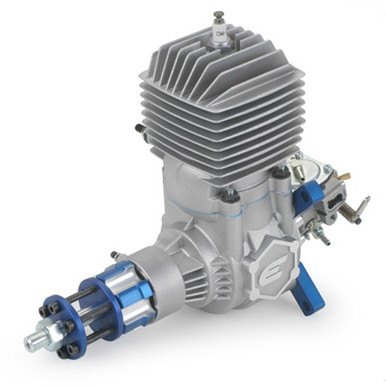

EVOE58GX2 EVOE58GX2 EVOLUTION 58GX2 (3.6ci) Gas Engine
Note: Graves RC Coupons are not applicable with this product
Features:
- Easy-to-start electronic ignition
- Superior porting for high power
- Specially engineered for ease of operation
- Preset Walbro carburetor
- Same no-fuss reliability as Evolution’s glow engines
- Includes everything needed for installation
- Swings a 2-blade 24×10 prop at 6900 rpm
Technical Specifications:
Type:2-stroke gasoline
Displacement:3.6 cu in (58.19cc)
Bore:1.65 in (42.00mm)
Stroke:1.65 in (42.00mm)
Cylinders:Single
Engine (Only) Weight:1820 g (64.2 oz)
Crankshaft Threads:M10 X 1.0mm
Benchmark Prop:Mejzlik 24 x 10 @ 6,900
Prop Range:22 x 10 – 26 x 10
RPM Range:1,000 thru 7,500
Fuel:Gas/Oil mix 40:1
Mounting Dimensions:243 x 78 x 140 mm
HP:8.5 hp @ 6950 rpm
Cylinder Type:Ring
Starting System:Electronic Ignition
Carb Type:Walbrox
Crank Type:Ball Bearing
Carb Type:Walbro
Manuals:
EVOE58GX2-Manual-English
