Description
GPMG0510 Great Planes Gear Drive 28mm Motors
Great Planes Gear Drive 28mm Motors

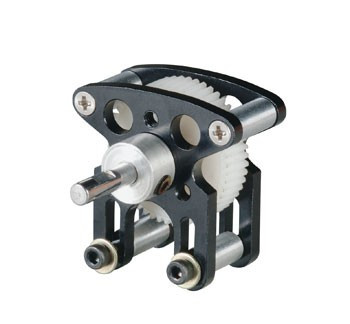

This is the Great Planes ElectriFly Ammo 28mm Gear Drive.
This bolts directly to the ElectriFly Brushless Motor Mount (GPMG1255).
Features:
- For 28mm Ammo Motors and most other 28mm In-runner motors
- High-precision spur and pinion gear for quiet operation
- Dual ball bearing-supported output shaft
Includes:
One gear drive
All assembly hardware
Two different pinion gears 11T and 16T
40T and 50T spur gear
Collet style prop adapter
Requires:
Attaching to the motor mount
Technical Specifications:
Length: 2.4″ (60.9mm) approx.
Width: 1.4″ (35.5mm) approx.
Motor output shaft dimension: 3.175mm
Prop adapter shaft dimension: 5mm to 5/16-24
Gear ratios included: 2.5:1, 3.1:1, 3.6:1, 4.5:1
2.1:1 with 16T pinion and 40T spur
3.1:1 with 16T pinion and 50T spur
3.6:1 WITH 11T pinion and 40T spur
4.5:1 with 11T pinion and 50T spur
Weight: 1.2oz (34g)
