Description

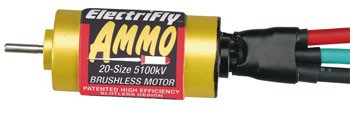

GPMG5010 Great Planes Ammo Brushless Motor 20-5100KV
Great Planes Ammo Brushless Motor 20-5100KV
Features:
- Sensorless design requires a Sensorless Electronic Speed Control
- Slotless design that offers numerous performance advantages including Patented method for overlapping the winds allows for more copper to be packed inside the can to generate exceptional power
- No heavy iron teeth with air gaps in between allows for no cogging which increases efficiency, responsiveness, and power output compared to cheaper slotted motors
- Precision bearings make these motors very reliable and virtually maintenance free (ABEC3 shielded)
- Uses Neodymium “rare earth” magnets which are the strongest permanent magnets available with one of the highest temperature ratings in radio control at 302F (150C)
- Uses magnet wires with one of the highest temperature ratings in radio control at 392F (200C)
- Can be used for direct-drive or geared applications
- Very low RF and electromagnetic interference, poses less risk to on-board radio control radio system
- Two sets of mounting holes (one set of holes is spaced 16mm apart, requiring 2.5mm machine screws. A second set of holes is spaced 16.8mm apart, requiring screws which are 3mm in diameter)
- Stainless steel output shaft
- Two year warranty
Includes:
One Ammo motor
Three high performance, gold plated, bullet connectors
Requires:
An Electronic Speed Control such as The Typhoon 25
A 2mm prop adaptor if using direct drive – HIGG2100
A gearbox if wanting to run geared
Three gold plated, 4mm female bullet connectors – GPMM3115
Technical Specifications:
Length: 1.57″ (40mm)
Diameter: 0.79″ (20mm)
Shaft diameter: 0.08″ (2mm)
Shaft length: 0.32″ (8mm)
Weight: 2oz (57.7 grams)
Input voltage: 7.2-12V DC
RPM per volt (kV): 5,100
Max. Constant Current: 10-12A
Max. Surge Current: 18-20A
