Description
Package Includes:

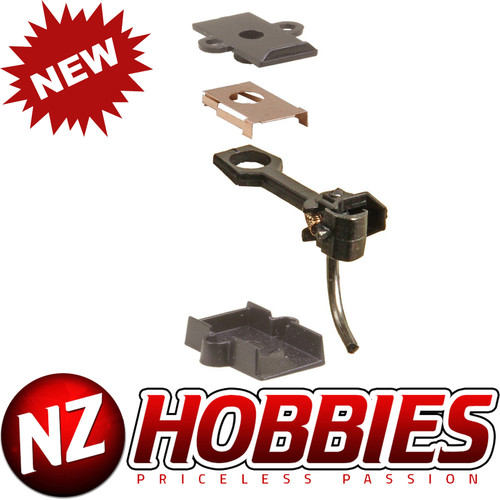

(2) Pair 26 Plastic Shank Couplers – Long Centerset Shank
(2) Pair 634 Centering Spring NO.5® Style
(2) Pair 213 055″ ID & .100″ ID Bushing/Sleeves
(2) Pair 212 Talgo Truck Adaptors
(2) Pair 213 Gearboxes
(2) Pair 232 Gearboxes
(2) 622 Knuckle Springs
26 Plastic Coupler Features:
Material – Metal Knuckle, Plastic Coupler Shank
Shank Length – Long (25/64″) (center hole to back of coupler head)
Coupler Offset – Centerset
Knuckle Spring – 622
Centering System – Standard Shank
Centering Spring – 634 Centering Spring NO.5® Style
Head – Standard Head
Works In Place of – 146, long centerset “clone” couplers
Works With – 213, 232, 234, 242, most manufacturer cast-on draft gearboxes
212 Talgo Truck Adaptors:
Material – Insulated Plastic
Works With – NO.5®, 58, 20-Series and all Whisker® Couplers
To check coupler height, set the coupler into the talgo truck pocket and hold it level as possible and check the coupler height with a 205 or newer 206 HO coupler height gauge.
NOTE: So it is important to check coupler height and make sure it is correct “before” you insert the talgo truck adaptor, because it’s almost impossible to remove without breaking something.
213 Plastic Draft Gearboxes:
Material – Insulated Plastic
Dimensions – 25/64″L x 5/16″W x 3/32″H
Works With – NO.5®, 58, 20-Series and all Whisker® Couplers
232 Plastic Draft Gearboxes & Lids Features:
Material – Insulated Plastic
Dimensions – 29/64″L x 19/64″W x 7/64″H
Works With – NO.5®, 58, 20-Series and all Whisker® Couplers
26 with a 212 Talgo Truck Adaptor. Mounting Specifications:
Centerline – 25/64″
Trip Pin Height – 1/32″
26 in a 213 monted on bottom. Mounting Specifications:
Mounting Height – 29/64″
Centerline – 25/64″
Trip Pin Height – 1/32″
Center Hole – 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
26 in a 213 monted on top. Mounting Specifications:
Mounting Height – 23/64″
Centerline – 25/64″
Trip Pin Height – 1/32″
Center Hole – 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
26 in a 232 Mounting Specifications:
Mounting Height – 29/64″
Centerline – 25/64″
Trip Pin Height – 1/32″
Center Hole – 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
Side Holes – 0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary)
Recommended Tools:
206 Insulated Multi-Purpose Coupler Height Gauge
230 Talgo Adaptor Insertion Pic
231 Greas-em Dry Graphite Lubricant
237 Coupler Trip Pin Pliers
240 Double Headed Pin Vise
241 Dual Tool Manual Uncoupling Tool and Spring Pick
246 Tap (2-56) and Drills (50 and 43)
780 Tap (0-80) and Drills (55 and 52)
