Description

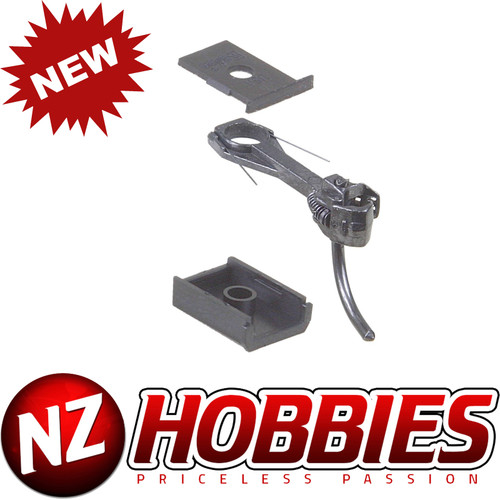

156 “Scale” Whisker® Metal Couplers – Long Centerset Shank
The next evolution of model train couplers starts and ends with the Kadee® Whisker® series of couplers. The scale size and detail of the 58 coupler has long been popular with model railroaders, so we knew we had to offer a Whisker® version. The 156 is a Long Centerset scale sized coupler with smaller head and knuckle for a more prototypical look. The 156 features an even longer-lasting and more reliable design. No more fumbling with centering springs. No more multi-piece assemblies. The 156 Whisker® coupler is a true drop-in coupler. Use Kadee® Whisker® couplers in your next model and enjoy the most reliable and smooth coupling experience you’ve ever had. Always made right here in the USA with legendary Made In America quality.
The 156 is interchangeable with the 26, 36, 146, and most manufacturer’s Long Centerset OEM knuckle couplers. For a 36 equivalent use the 156 in a 252 Gearbox.
Package Includes:
(2) Pair 156 “Scale” Whisker® Metal Couplers – Long Centerset Shank
(2) Pair 242 Snap-Together Gearboxes & Lids
(2) Spare 625 Knuckle Springs
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox or insulated 26 coupler.
| 156 Coupler Specifications | |
|---|---|
| Shank Length | Long – 25/64″ (center of mounting hole to back of coupler head) |
| Shank Offset | Centerset |
| Mounting Height | 29/64″ |
| Centerline | 25/64″ |
| Trip Pin Height | 1/32″ |
| Head Style | Scale |
| Centering Spring | Whisker® |
| Knuckle Spring | 625 |
| Shank Material | Metal |
| Knuckle Material | Metal |
| Color | Black |
| Compatible Gearboxes | 213, 232, 234, 242, Most manufacturer molded-on gearboxes* |
| 242 Gearboxes & Lids Specifications | |
|---|---|
| Material | Insulated Plastic |
| Dimensions | 7/16″ L x 5/16″ W x 1/8″ H |
| Center Hole | 2-56 Insulated Screws |
| Color | Black |
| Compatible Couplers | No.5®, 21, 22, 23, 24, 25, 26, 27, 28, 29, 58, 118, 119, 141, 142, 143, 144, 145, 146, 147, 148, 149, 153, 156, 158 |
