Description
**New 800 Series V2 from Orca !!

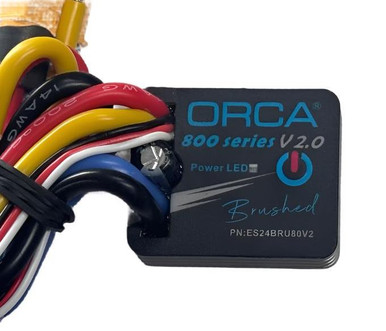

Introducing the ORCA 800 Series V2 Brushed ESC with Program Card – the perfect system for 1/10 crawler applications.
Also suitable for 1/10 TC applications such as in the Tamiya TT-01 or TT-02.
Key Features:
- 1/10 Brushed System
- Case Material: Aluminum
- Super Small Size
- Upgraded High Output 5A BEC
- Aluminum Bottom Case
- Waterproof
- 80A High Current Output
- LED Program Card
What’s In The Box?
- ORCA 800 Series V2 80A Waterproof Brushed ESC (1 pc)
- LED Program card
Setup Parameters Adjustable:
- Running Mode: Fwd/Bke/Rev, Fwd/Bke, Fwd/Rev
- Battery tpe: LiPo / LiFe / Nixx
- Battery Cutoff
- Initial Launch Force
- Punch
- PWM: 1k, 4k, 8k, 12k, 16k, 24kHz
- Throttle Compress
- Initial Start Force
- Max Forward Force
- Max Reverse Force
- Max Brake Force
- Brake Punch
- Drag Brake
- Initial Brake Force
- Neutral Range
Technical Specifications:
Size: 29×34.8×10.2mm
XT60 Plug for battery connection
Weight: 20g
Input Voltage: 6-12.6V (2-3S LiPo)
Peak Current: 400A
Continuous Current: 80A
Motor Type: 540 and 550 size Brushed Motors
B.E.C.: 5A/6V
