Description

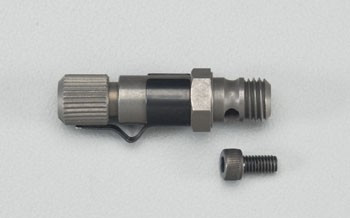

OSM29081910 OS 60M RETURN NEEDLE
Note: Graves RC Coupons are not applicable with this product
This is the optional Return Needle Set for the O.S. 60M carb
that is used on the .91 SX-H C.
| FEATURES |
Allows for the adjustment of the return fuel volume, which enables
adjustment of the mixture around hovering
| INCLUDES |
One return needle holder (not available as a seperate item)
One return needle
One needle o-ring
One ratchet spring
One 2.6x5mm hex head screw (threads into the end of the needle and
allows the adjustment of the needle with a hex-wrench)
| REQUIREMENTS |
Removal of the return screw and installing the return needle
following the included instruction sheet
| COMMENTS |
This needle-valve adjusts teh ruturn fuel volume. Therfore, closing
the needle reduces the volume and the mixture becomes rich, and
opening the needle increases the volume and the mixture becomes lean
