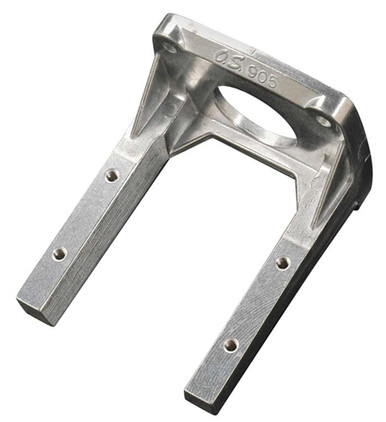

OSM71905200 O.S. Motor Mount 65LA/61-91FX/75AX
Note: Graves RC Coupons are not applicable with this product
This is a motor mount drilled and tapped to fit O.S.
GT15, 61SF, 61SF-P, 61RF, 61RF-P, 60FP, 61FX.
Includes all hardware necessary for mounting the engine to a firewall and to
mount an engine to the engine mount. The nose gear hole is not pre-drilled.
| INCLUDES |
Four engine mounting screws (to secure the engine to the mount)-
M3.5×16
Four lock washers (for the engine mounting screws)
Four blind nuts (they fit into the firewall)
Four motor mount screws (to secure the mount to the firewall)-
M4x20
One L-wrench for the screws
| SPECIFICATIONS |
Type of Material: All Aluminum mount with Steel screws and washers
Type of Mount: Beam Style, Square Shaped Back
Length: 78mm (3″)
Width: 45mm (1.77″)
Height: 45mm (1.77″)
Center Distance Between Firewall Mounting Holes: 46.6mm
** Distance from firewall to first engine mounting hole: 37mm
| COMMENTS |
The firewall mounting holes are in a square configuration, so C.D.
dimension would apply to top and bottom and side to side.
