Description

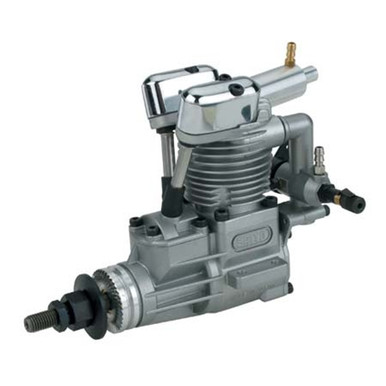

SAIE040A SAITO FA-40A 4-Stroke Engine
Note: Graves RC Coupons are not applicable with this product
Features:
- 10 X 4 prop at 10,500 rpm
- Smaller case design for lighter weight
- Nearly the same case size as a .30, but packs more power
Specifications:
Type:4-stroke
Displacement:.40 cu in (6.60 cc)
Bore:0.86 in (22.0 mm)
Stroke:0.68 in (17.40 mm)
Cylinders:Single – Chrome Plated
Total Weight:10.64 oz
Engine (Only) Weight:10.24 oz
Muffler Weight:0.40 oz
Crankshaft Threads:1/4 x 28
Benchmark Prop:11×5 APC @ 10,600
Prop Range:10×7 – 11×6
RPM Range:2,000 – 12,000
Fuel:10%-30% Synthetic
Mounting Dimensions:88 x 45 x 93 mm
Muffler Type:2 – Piece
HP:0.65
Cylinder Type:AAC
Carb Type:Barrel, 2 Needle Valve
Crank Type:Ball Bearing
Manuals:
SAIE040A-Manual-English
