SPMSS6170 Spektrum S6170 Standard Digital Surface Servo: Waterproof
Note: Graves RC Coupons are not applicable with this product

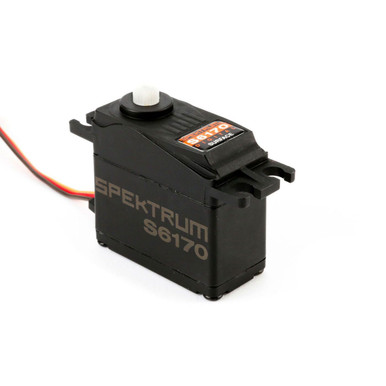

Spektrum S6170 Standard Digital Surface Servo: Waterproof
The S6170 is a good solid standard digital servo that is lightweight and offers good performance in most 1/10 2WD applications.
Features:
- 65 oz.-in. torque torque at 6.0V-perfect for most 1/10 2WD vehicles
- Long lead for use in bigger chassis such as some short course trucks—servo can be installed without a servo extension
- .16 sec/60 degrees provides a quick response as a steering or throttle servo
- Waterproof case design protects electronic components
Technical Specifications:
| Bearing: | Single |
| Bushing Or Bearing: | Bearing |
| Gear Type: | Plastic |
| Motor Type: | Brushed |
| Servo Type: | Digital |
| Servo Voltage: | 4.8–6.0V |
| Speed: | 0.17 sec/60 deg @ 4.8V; 0.14 sec/60 deg @ 6.0V |
| Torque: | 70 oz-in (5.0 kg-cm) @ 4.8V; 80 oz-in (5.8 kg-cm) @ 6.0V |
