Description

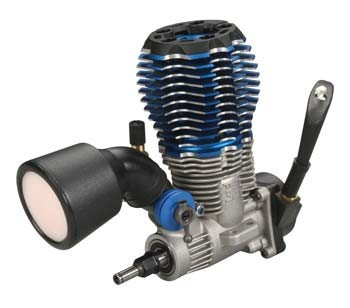

TRA5407 Traxxas TRX 3.3 IPS Shaft Engine w/Recoil
Note: Graves RC Coupons are not applicable with this product
| Features: |
- For use in all Traxxas TRX2.5 and TRX 3.3 equipped vehicles
- Pull starter can be removed to install the EZ Start
- 60% more peak power than the TRX2.5, with nearly 50% more power under the curve for strong linear acceleration
- Round rear exhaust with one-piece IPS crankshaft
- Composite body slide valve carburetor with high-volume air filter
- Blue anodized aluminum cooling head with molded head protector
| Includes: |
Traxxas TRX 3.3 Racing Engine with Pull Starter and glow plug
One instruction manual
One service support guide and parts lis.
One set of engine decals
One engine break-in DVD
One small bottle of air filter oil
One air filter
| Requires: |
Car fuel with 10%, 20% or 33% nitro content
| Techicanl Specifications: |
Displacement: .20 cu in (3.3cc)
Practical RPM: N/A
Output: N/A
Weight: 10.9oz (305g)
Distance between mounting holes same side: 0.39″ (10mm)
Distance between mounting holes opposite side: 1.2″ (32mm)
Distance from center of engine to front bearing: 1.2″ (32mm)
Distance/bottom of mounting flanges/top of cylinder head: 3.5″ (88mm
Width of mounting flanges: 44mm
Manuals:
TRA5407-Manual
TRA5407-Exploded View
