Description

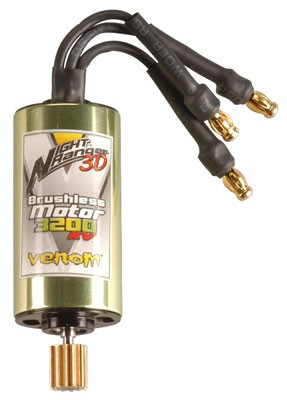

VENF-7748 VENOM 3200KV BRUSHLESS MOTOR
Features:
- Upgrade to a brushless motor for better power to weight ratio and
- less maintenance
- Pre-installed 12 tooth pinion gear
- 3.5mm diameter plugs mate directly to the 20A Night Ranger 3D
Includes:
Venom RC Night Ranger 3D Brushless Motor with pinion gear, two 2x6mm
hex head screws and two 2mm washers
Requires:
Installing in helicopter and connecting to speed control
Brushless motor controlller
Technical Specifications:
Length: 1.8″ (47mm)
Width: 0.94″ (24mm)
Thickness: 0.35″ (9mm) at thickest point
Weight: 1.12oz (31.8g)
Voltage Range: 6-18
Kv: 3200
Diameter: 0.79″ (20mm)
Can Length: 1.6″ (40mm)
Shaft Diameter: 0.079″ (2mm)
Bolt Pattern: 0.53″ (13.5mm)
Weight: 2.3oz (65g)
